The Twister reels extreme duty frame and large capacity spool design were built to last. The rotating spool design allows you too easily roll from the front with a complete view of the hose coming in. R Braun Inc. Twister reel is the most hose friendly cart available on the market, allowing for a comfortable hose fit with a dome wrap design, which minimizes wear on hoses. They are available in multiple sides and in a single axle or dual axle. Air or Hydraulic brake options available.

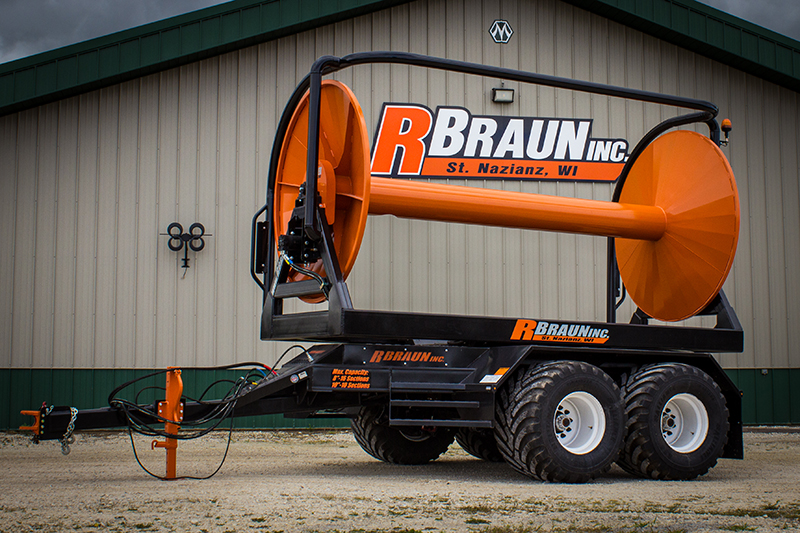

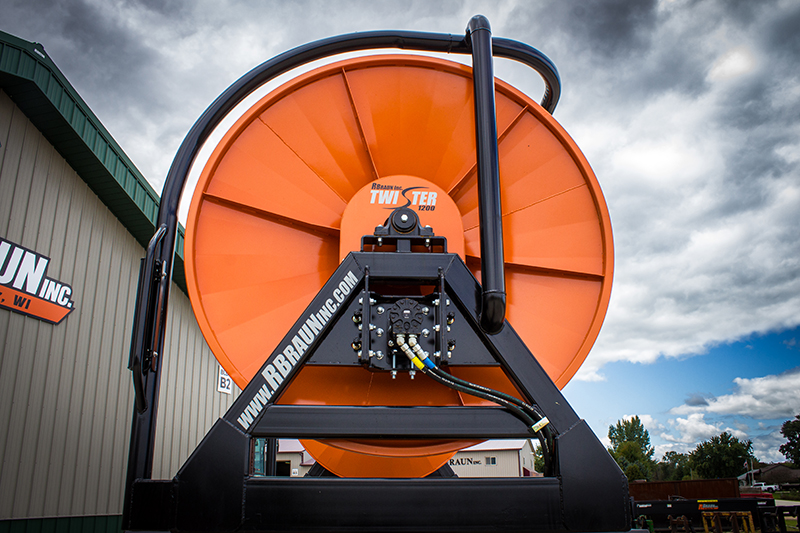

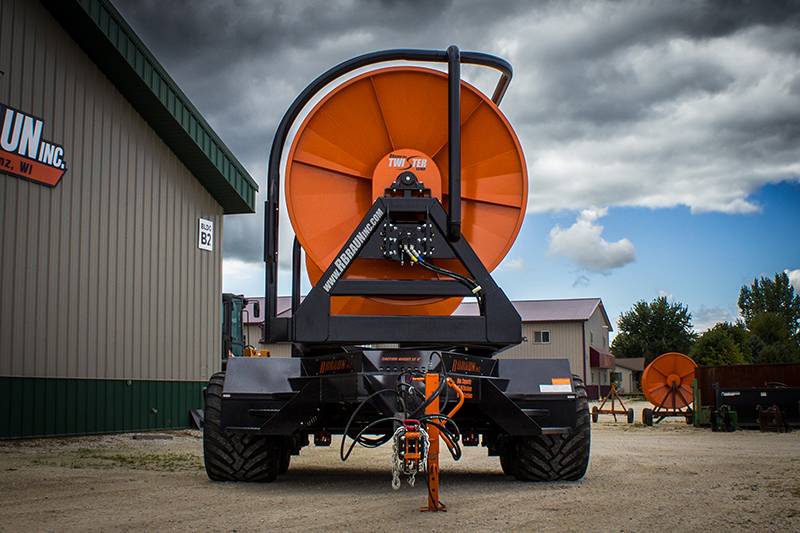

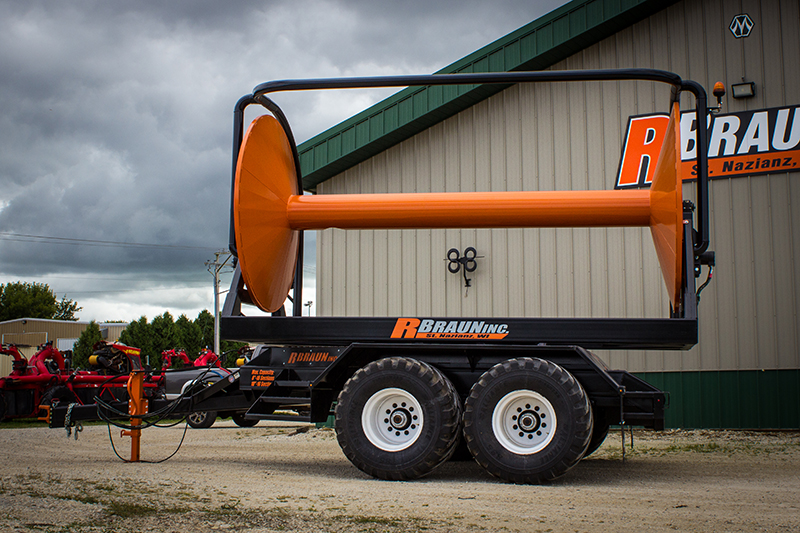

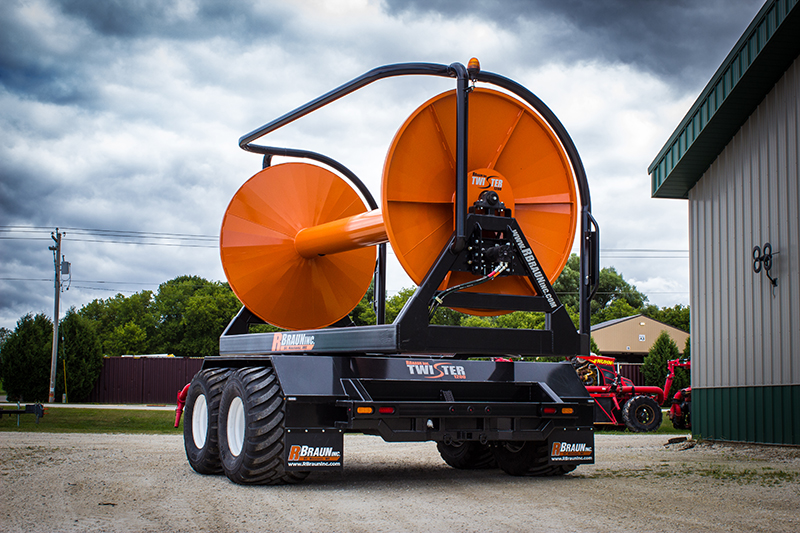

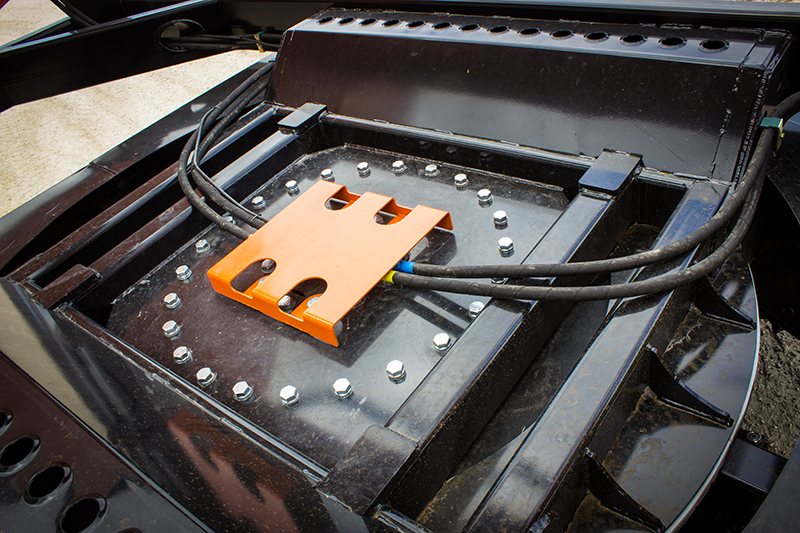

Twister 1200
- 710-45-22.5 High Flotation Tires
- LED Light Package
- LED Strobe Lights, front and back
- High Torque Parker Hydraulic Motors with 2 Speed Options
- Heavy Duty Drum Bearings
- Tapered End Domes
- Optional: Hydraulic, Air Brake, or Combo Package
-
Advantages:
- Same great spool design allowing for 180 degrees of rotation and front roll capability
- NEW case drain valve block for superior motor protection
- NEW narrowed shipping with to 12 ft.
- Enhanced transport visibility
- Rear fitting basket

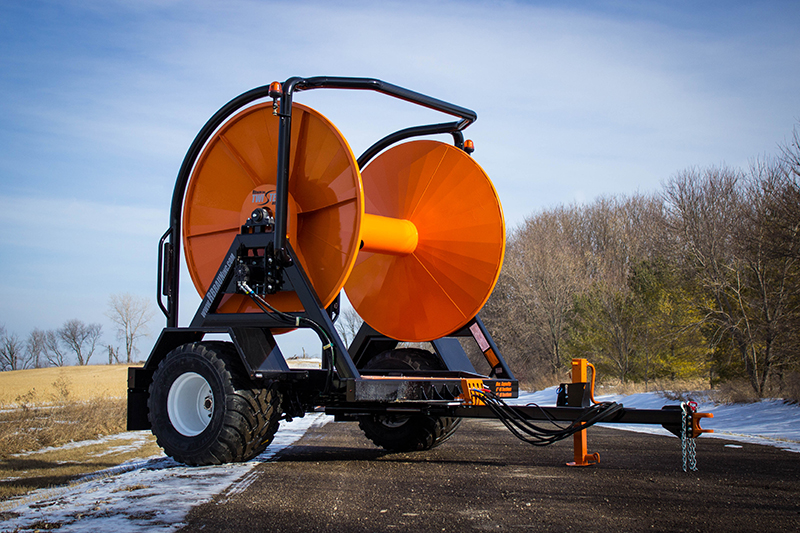

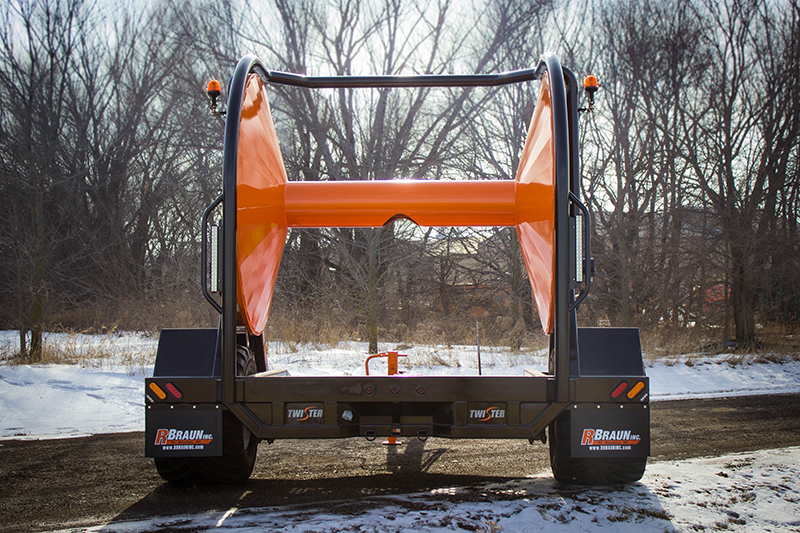

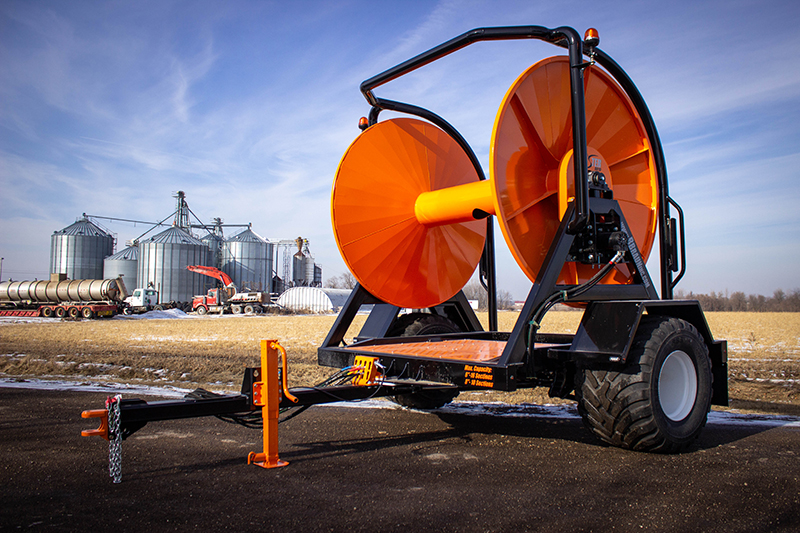

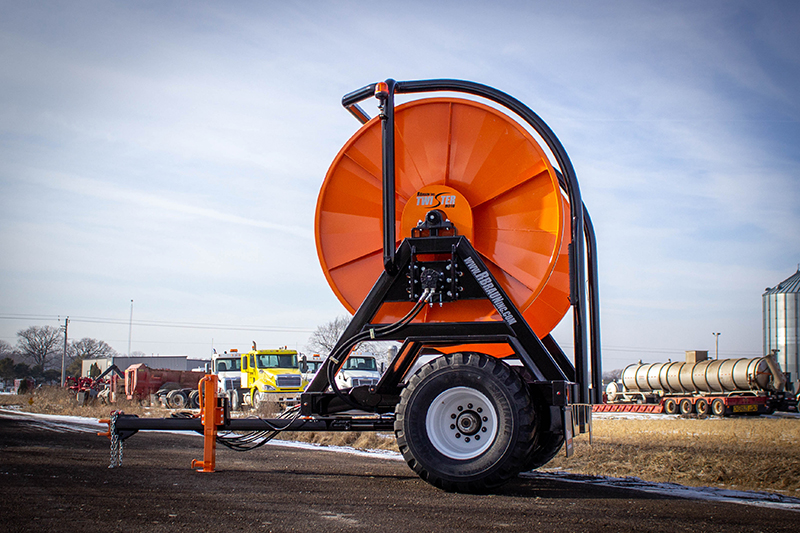

Twister 8010
- Single axle pivoting hitch hose reel
- 700-50R22.5 large flotation tires
- High torque/high speed driven motors
- Heavy duty double taper roller bearings
- 27000lb axle with leaf spring suspension
- LED road light package
- Dual LED work & beacon lights
- Large storage basket
-
Advantages:
- Large hydraulic motors to pull stubborn/muddy hose
- Case drain ports to extend motor life
- Articulating hitch pivoted off the main frame
- 13’ transport width
- Dual beacon light to enhance visibility for oncoming traffic
- Higher ground clearance so fittings won’t hit
- Press broke tapered dome ends with stiffener plates and rolled outer round tube
- All hydraulically powered functions

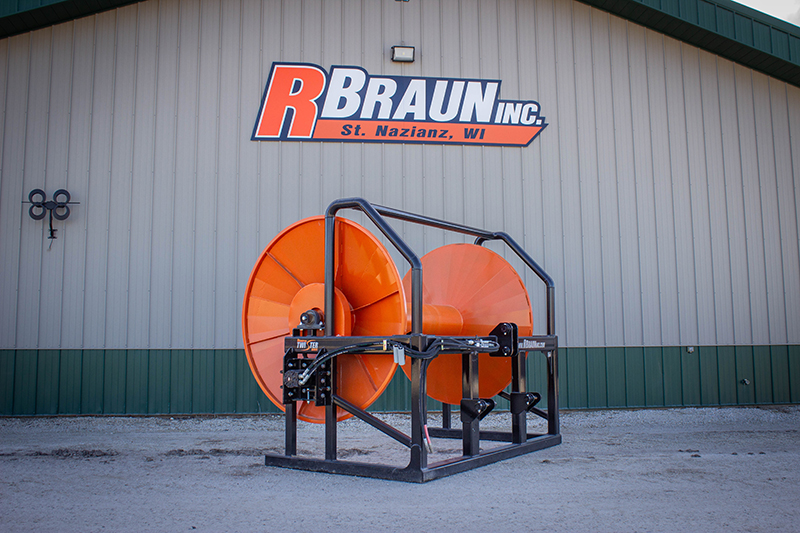

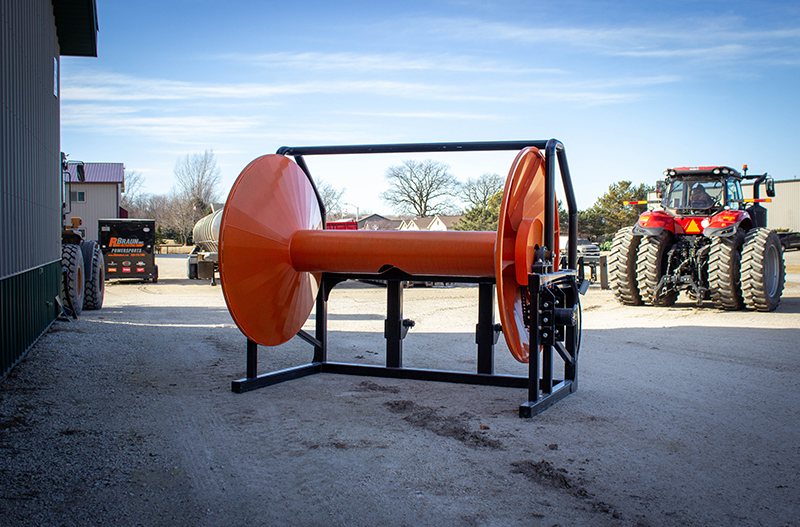

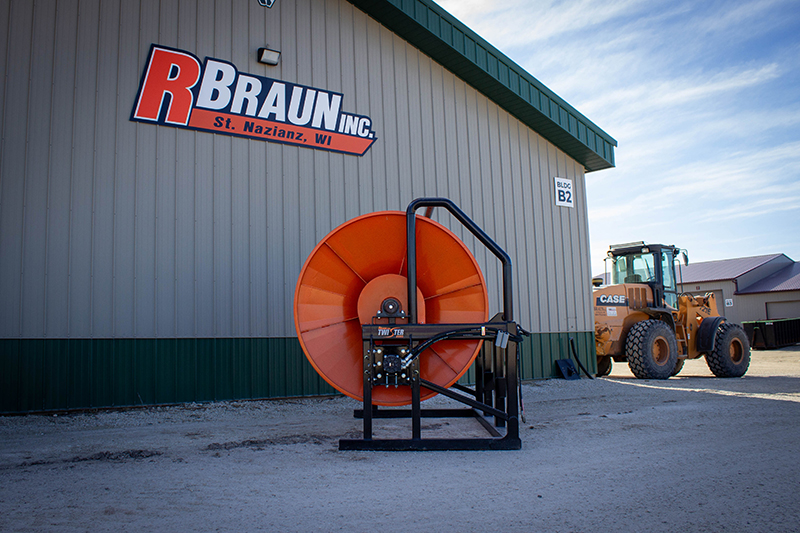

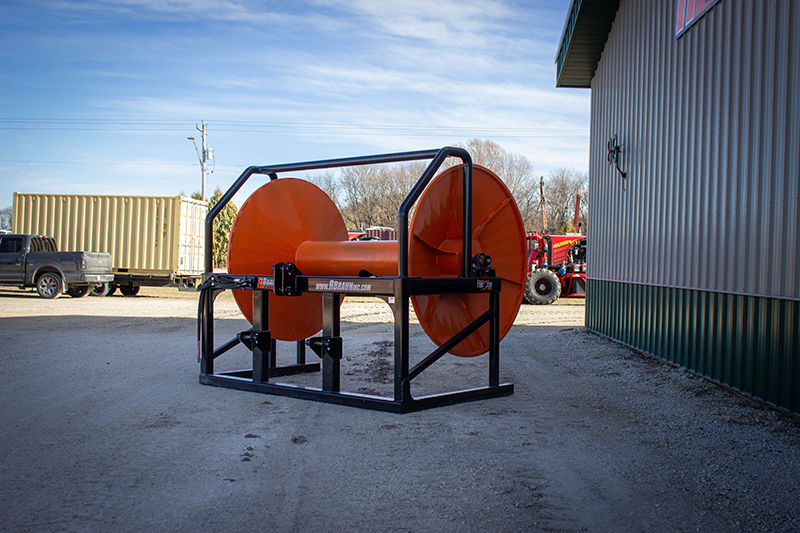

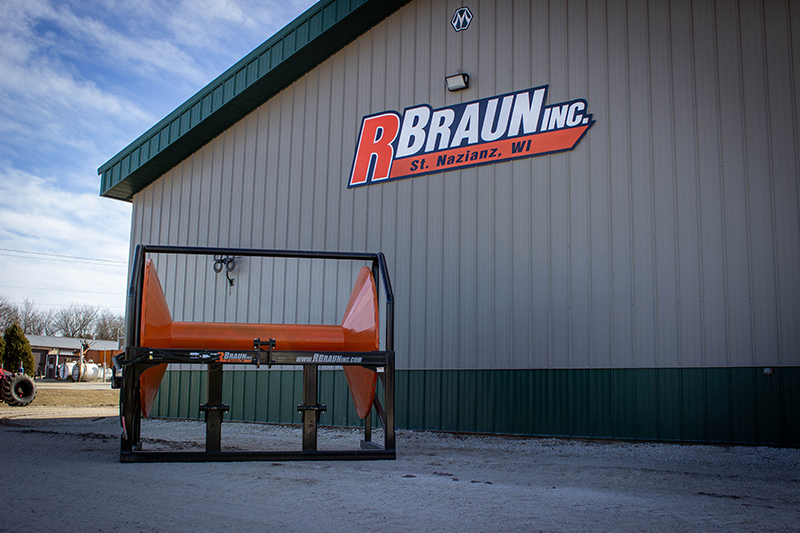

Twister 3pt
- Large capacity for 3 point cart
- Ability to store a few extra pieces without adding larger reel
- Applicator can roll drags and reset
- Simple, robust design
- Low maintenance
- HD frame with feet to rest on when unhooked
- Tapered spool end domes
- Cat 3/ Cat 4 3-point hook ups
- 3 in. bearings
-
Single hydraulic motor drive system
- Same components as Twister 8010 & 1200
